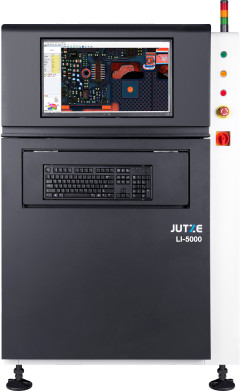

JUTZE AOI LI5000
Product Description:
The first AOI in China that combines luminance and RGB chromaticity
Innovative AOI detection principle, high detection rate
Fewer misjudgments combined with multi-frame high-resolution industrial CCO cameras
Get high-definition PCB images
Provide the highest level of AOI inspection solutions available today
With sharper images with different illumination angles, detection performance is greatly improved
Collect SPI, AOI before and after furnace and whole process data of reflow furnace
Comprehensive analysis of the reasons for failure to achieve complete process control of the production line
Real-time SPC data analysis and processing
Online non-stop remote debugging and program update
Equipment parameter:
| Item | LI-5000 |
| Board specification | board size | 59mm X 70mm 510mm X 460mm |
| board limit height | top:35mm bottom:50mm |
| board thickiness | 0.6mm~6mm |
| Rail specification | rail move height | 900+20mm |
| rail transport direction | Factory setting according to customer requirements |
| Machine size | W1000mm X D1170mm X H1800mm |
| Machine weight | 734kg |
| visual system | imaging system | Industrial digital camera 5M (9.1M optional) |
| Telecentric lens (optional) |
| Lighting system | High-brightness four-channel LED light source |
| Resolution | 12um (5um~17.5um) |
| FOV size | 36.7mm*30.7mm(5M 15um) |
| Acquisition and operation time | 3~5 FOV/sec |
| Inspection item | Missing parts, offset, pole reverse, tombstone, bridge connection, less tin, lead floating, lead bending OCV |
| Power | AC220V 50/60Hz 1.8kVA |
| Air pressure requirements | 0.5 MPa |
| Environmental requirements | Temperature: 5~40C, Relative Humidity: 25%~80% without frost |
| communication method | standard SMEMA |
FAQ
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.
Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: What your main customers?
A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.
Q: Why choose us?
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.
Global Service
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
